 V-Ribbed Belts

V-Ribbed Belts

    Description:

Rubber V-ribbed belt is the combination of merits of both V belt and flat belt. It got not only the soft and tenacious features of flat belt but also has compact and high efficient merits of V belt.




1 2 3 4 5 6 7 8 9 10 Next >

Structure
No.
Name
Function
Material
1
Top Fabric
Protect the lining tensile member
Polyester Cotton Canvas
2
Buffer Rubber
Suport adn protect the adhesive
force of the tensile member
CR, EPDM
3
Tensile Member
Critical material to pass the dynamic force
Polyester, Nylon
4
Bottom Rubber
Maintain the shape of the rubber and
improve its side compression performance
CR, EPDM

Feature
  • Wide breadth but thin belt, excellent elastic and flexural property
  • High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc.
  • Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
  • Excellent heat-resistance, oil-proof, and wearing resistance
  • Less slip while large transmission effect during the process of operation
  • Less noise during the process of operation

Size of Section
Type
Ribsection(mm)
Angle of rib(o)
Belt Thickness(mm)
Rib Numbers
Length range
PH
1.6
40
3
3-54
540-1270

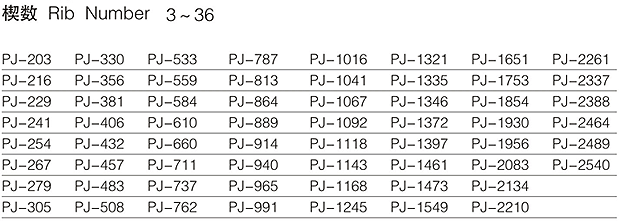

PJ
2.34
40
4
3-36
540-18880

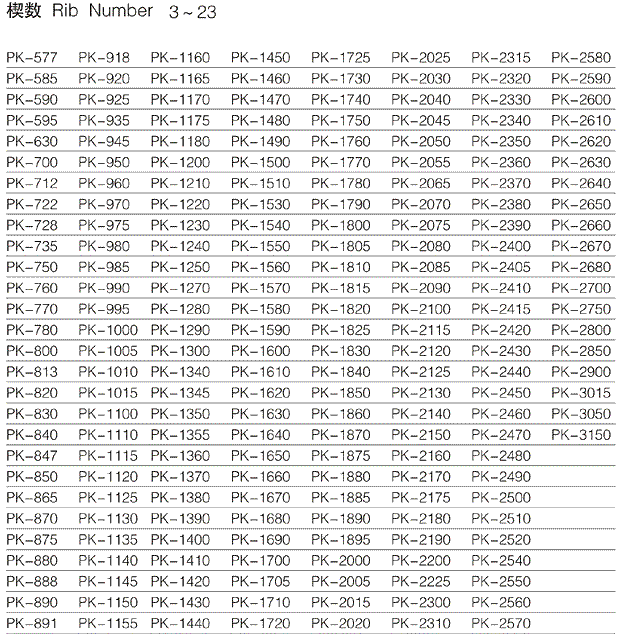

PK
3.56
40
4-6
3-23
600-2400

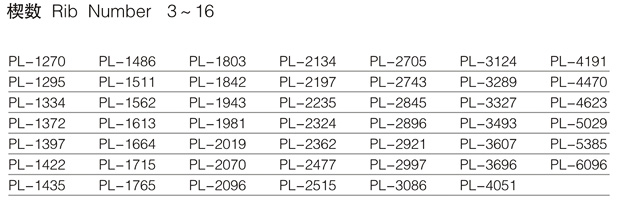

PL
4.7
40
10
3-16
900-3000

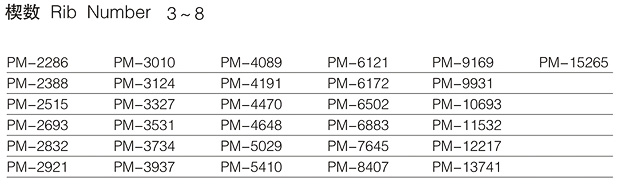

PM
9.4
40
17
3-8
1500-3000
